STR-N-LED

STR-N-LED

Application:

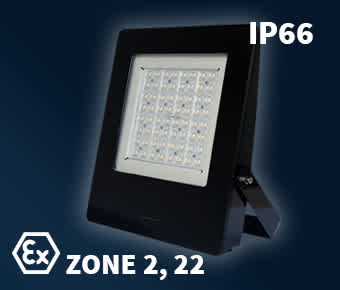

Dustproof reflector lighting fixture STR-N-LED with degree of protection IP66 is designed for lighting of areas with danger of explosions, such as warehouses and outdoor working areas.

Ballast:
EP -- electronic 220--240V/5060Hz

Light source:
LED, 4000K, CRI +70, MacAdam3

Housing:
Aluminium casting, black colour, RAL 9005, MATT

Diffuser:
Hardened safety glass

Optics:
DWC: Excellent mix of pole spacing and road width

T2M: Large pole spacing and standard road width

LW1: Large pole spacing and wide roads or area lighting

Fastening:
Surface mounted by means of adjustable bracket with optional pole brackets

Connection:
Screwless three-pole terminal block, max. dia of wires 2.5 mm2 (Loop-in/Loop-out)

Standard equipment:
1 x Exe M20 cable gland for diameter of cable 7-12 mm, 1 x Exe M20 stopping plug

Calculated lifetime -- LED modules:
L80B10 ta50°C -- 60 000h

On request:
DIM -- dimmable electronic ballast (DALI)
**2.7K-6.5K **- colour temperature

STR-N-LED
Ex II 3G Ex nR IIC T6 Gc
Ex II 3D Ex tc IIIC T85°C Dc
