SALUKA-N-LED

SALUKA-N-LED

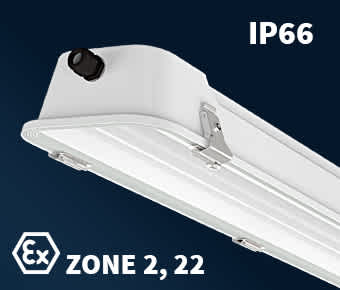

Application: Dustproof lighting fixture SALUKA-N-LED with splash water resistance is designed for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 17 ATEX 0027X).

Ballast: EP -- electronic 220-240V/50-60Hz, 220-240V, 0 Hz DC

Light source: LED, 4000K, CRI +80, MacAdam3

Housing: White painted steel sheet RAL 9003

Diffuser: Clear hardened safety glass

Reflector: White painted steel sheet RAL 9003

Fastening: Direct surface wall or ceiling mounting, ceiling mounting by means of ceiling brackets or adjustable brackets, wall mounting by means of wall arm brackets, pole mounting by means of pole brackets, suspension via set of suspension hoocks (standard equipment)

Connection: Screwless three-pole terminal block, maximum diameter of wires 2.5 mm2

Standard equipment: 1 pc M20 cable gland for diameter of cable 7-12 mm, 1 pc M20 sealing plug, 2 pcs suspending hook, 2 pcs rubber gasket

Calculated lifetime -- LED modules: L80B10 ta40 -- 70 000h L70B10 ta40 -- 100 000h

On request: DIM-- dimmable electronic ballast (DALI,DSI, 1-10V) GESIS -- possibility to equip lighting fixtures with connectors 1/3 F - single-phase or three phase through wiring connection, maximum diameter of wires 1.5 mm2 MULTI-1/3- maintained emergency lighting NEREZ --housing produced f rom stainless steel AISI 304 or AISI 316 (in case of STAINLESS STEEL version its declared for ambient temperature decreased about 5-10°C) EM-1/3 - non-maintained emergency lighting NANO- lighting fixtures can be protected by special nano-layer (hydrophobic, oleophobic or antibacterial protection

SALUKA-N-LED, MULTISALUKA-N-LED, SALUKA-N-LED-Em EX II 3G Ex nR IIC T6 Gc EX II 3D Ex tc IIIC T65°C Dc
