PITBUL-N-LED

PITBUL-N-LED

Application:

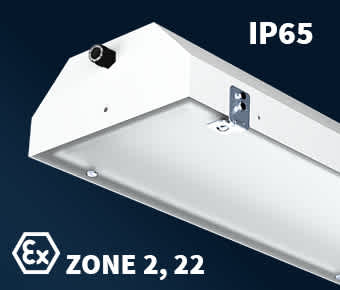

Dustproof lighting fixture PITBUL-N-LED with splash water resistance is designed for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 17 ATEX 0129X).

Ballast:
EP -- electronic 220-240 V, 50/60 Hz, 220 -- 240 V, 0 Hz DC

Light source:
LED, 4000K, CRI +80, MacAdam3

Housing:
White painted steel sheet RAL 9003

Diffuser:
Opal hardened safety glass

Fastening:
Direct surface munting by means of M8 screws, suspension via suspending brackets, recessed mounting via the frame, ceiling mounting via set of ceiling brackets, pole mounting via set of pole brackets, wall mounting via set of adjustable brackets.

Connection:
Screwless three-pole terminal block, maximum diameter of wires 2.5 mm^2^

Standard equipment:
1pc EX plastic cable gland M20x1,5 for diameter of cable 7-12mm, 1pc EX plastic sealing plug

Calculated lifetime -- LED modules:
L80B10 ta35 -- 70 000h
L70B10 ta35 -- 100 000h

On request:
DIM -- dimmable electronic ballast (DALI,DSI, 1-10V)
2.7K-6.5K - colour temperature
GESIS -- possibility to equip lighting fixtures with connectors
**RAL **- other colour scale
MULTI-1/3 - maintained emergency lighting
1/3 F - single-phase or three phase through wiring connec-tion, maximum diameter of wires 1.5 mm^2^
**EM-1/3 **- non-maintained emergency lighting
NANO -- lighting fixtures can be protected by special nano-layer (hydrophobic, oleophobic or antibac-terial protection)
**NEREZ **- housing produced from stainless steel AISI 304 or AISI 316 (in case of STAINLESS STEEL version its declared for ambient temperature decreased about 5-10°C)

PITBUL-N-LED, MULTIPITBULL-N-LED, PITBULL-N-LED-Em
Ex II 3G Ex nR IIC T6 Gc
Ex II 3D Ex tc IIIC T68°C Dc
