PITBUL-EX-LED

PITBUL-EX-LED

Application:

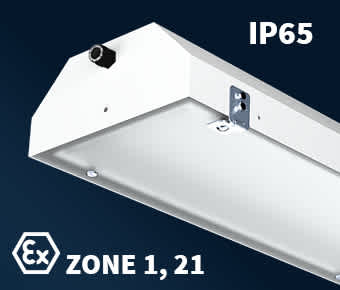

Dustproof LED luminaire series PITBUL-Ex-LED with resistance against of splashing water is designed for lighting areas with danger of explosion. Luminaire is certified by FTZÚ Ostrava-Radvanice (certificate FTZÚ 16 ATEX 0089X).

Ballast:
Electronic 110 -- 254 V, 50/60 Hz, 220 -- 250 V, 0 Hz DC

Light source:
LED, 4000K, CRI +80

Body:
White painted metal sheet RAL9003

Cover:
Opal tempered safety glass

Fastening:
Fastening with M8 screws through the base, with ceiling brackets or adjustable brackets, suspension via suspension brackets, into false ceiling by means of recessed frame, on the pole with set of pole brackets.

Connection:
Screwless three-pole terminal block, max. cross section of wires 4,0 mm2

Standard equipment:
1pc plastic cable gland M20x1,5 for diameter of cable 7-12mm, 1pc plastic sealing plug

Calculated lifetime -- LED modules:
L80B50 ta 55°C - 50 000h - 418/436
L80B50 ta 60°C - 50 000h - 218/236

On request:
EM-1,5/3 - non-maintained emergency lighting
MULTI-1,5/3 - maintained emergency lighting
1/3 F - one or three phase through wiring connection max. cross section of wires 4,0 mm2
3000/4000/6000K - colour temperature
RAL - another paint colour design
NEREZ - body from stainless steel sheet AISI 304 nebo AISI 316 (at stainless steel design is ambient temperature lower about 5-10°C)
NANO - light fixture is protected by special nanolayer (hydrophobic, oleophobic or antibacterial protection)

PITBUL--Ex-LED, MULTIPITBUL-Ex-LED, PITBUL-Ex-LED-Em
II 2G Ex db eb mb op is IIC T4 Gb
II 2D Ex tb op is IIIC T 67°C Db

PITBUL-Ex-LED-WOD
II 2G Ex eb mb op is IIC T4 Gb
II 2D Ex tb op is IIIC T 67°C Db
