EXTREME-LED-PLUS-FROST

EXTREME-LED-PLUS-FROST

Application:

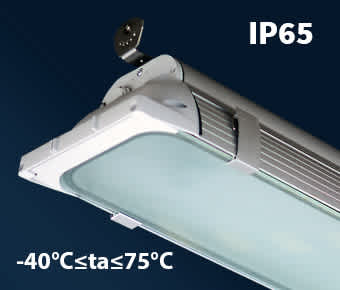

Aluminium dustproof lighting fixture EXTREME-LED-PLUS/FROST with splash water resistance designed for workshops, garages, industrial and production areas with higher ambient temperature, or warehouses and freezers with low temperature.

Ballast:
EP -- electronic 220-240 V/50-60 Hz AC, 220-240 V DC

Light source:
LED, 4000K, CRI +80, MacAdam3

Housing:
Aluminium alloy with ELOX surface treatment equiped with plastic ends caps (polycarbonate)

Diffuser:
OP -- matt hardened safety glass

Fastening:
Surface wall or ceiling mounting by means of adjustable brackets, suspension via set of cable suspenders

Connection:
Screwless three-pole terminal block, maximum diameter of wires 2.5 mm2

Standard equipment:
1 pc M20 cable gland for diameter of cable 7-12 mm, 1 pc M20 sealing plug

Calculated lifetime -- LED modules:
L80B10 ta40 -- 75 000h
L70B10 ta40 -- 110 000h

On request:
2.7K-6.5K
 - colour temperature
DIM -- dimmable electronic ballast (DALI)
GESIS-- possibility to equip lighting fixtures with connectors
NANO - lighting fixtures can be protected by special nano-layer (hydropho-bic, oleophobic or antibacterial protection)
1/3 F - single-phase or three phase through wiring connection, maximum diameter of wires 2.5 mm2
