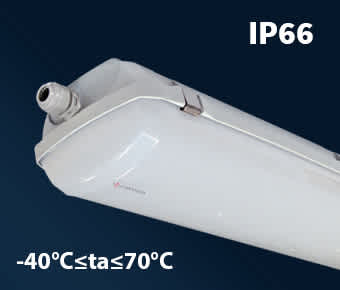

EXTRA-LED-PLUS-FROST

EXTRA-LED-PLUS-FROST

Application:
Dustproof lighting fixture of new generation EXTRA-LED-PLUS/FROST with splash water resistance is designed for workshops, warehouses, production areas and garages with higher ambient temperature.

Ballast:
EP
 -- electronic 220-240 V/50-60 Hz AC, 220-240 V DC

Light source:
LED, 4000K, CRI +80, MacAdam3

Housing:
Plastic material PC (polycarbonate), grey colour RAL 7035

Diffuser:
PC (polycarbonate), opal

Fastening:
Surface ceiling or wall mounting by means of two self-locking fastening brackets (standard equipment) or set of wall brackets - angle 45°, pole mounting via set of pole brackets, suspension by means of wire or cable suspenders.

Connection:
Screwless three-pole terminal block, maximum diameter of wires 2.5 mm2.

Standard equipment:
Cable gland M20 for diameter of cable 7-12mm and fastening brackets for direct fastening of lighting fixtures to a mounting surface and stainless clips.

Calculated lifetime -- LED modules:
L80B10 ta30 -- 70 000h
L70B10 ta30 -- 100 000h

On request:
GESIS
 -- possibility to equip lighting fixtures with connectors
2.7K-6.5K - colour temperature
1/3 F - single-phase or three phase through wiring connection, maximum diameter of wires 2.5 mm2
DIM -- dimmable electronic ballast (DALI)
NANO -- lighting fixtures can be protected by special nano-layer (hydrophobic, oleophobic or antibacterial protection)
NUP - stainless fastening bracket
NSPP - stainless steel clip and fastening bracket
