BOXER-LED

BOXER-LED

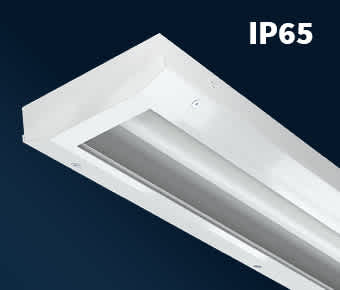

Application: Antivandal lighting fixture BOXER-LED with dust and splash water resistance is designed for areas with high risk of damage, i.e prison cells, psychiatric hospitals, gyms and pedestrian subways.

Ballast: EP – electronic 220-240 V/50-60 Hz AC, 220-240 V

Light source: LED, 4000K, CRI +80, MacAdam3

Housing: White painted steel sheet RAL 9003

Diffuser: Polycarbonate in combination with painted steel frame RAL9003

Reflector: Highly polished aluminium sheet

Fastening: Surface wall or ceiling mounting, recessed via frame for recessed installation or cornerr mounted via set for corner installation

Connection: Screwless three-pole terminal block, maximum diameter of wires 2.5 mm2. The lighting fixture is prepared for loop-in (possibility of connection of two cables)

Standard equipment: 2 pcs cable gland, washers with rubber to seal mounting holes, safety screws (it is necessary to order additionally 004778 - Bit for safety screw with socket head and pin s=3)

Calculated lifetime – LED modules: L80B10 ta30 – 70 000h L70B10 ta30 – 100 000h

On request: Em – non-maintained emergency lighting (1h, 3h) DIM – dimmable electronic ballast (DSI, DALI) 2.7K-6.5K – colour temperature MULTI – maintained emergency lighting (1h, 3h) NANO – lighting fixtures can be protected by special nano-layer (hydrophobic, oleophobic or antibacterial protection) NEREZ - housing produced from stainless steel AISI 304 or AISI 316 (in case of STAINLESS STEEL version its declared for ambient temperature decreased about 5-10°C) MW SENSOR - microwave sensor (if a sensor is required, contact technical support) RAL - other colour scale NIGHT LIGHT - equipped with 4-8W LED source for night-time lighting, 3K or 4K GLASS - hardened safety glass
