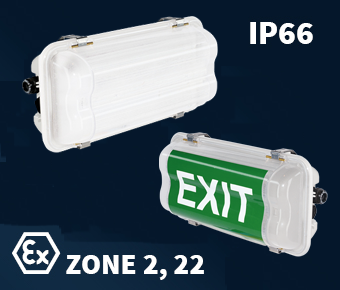

BASET-N-LED

BASET-N-LED

Application: Dustproof lighting fixture BASET-N-LED with splash water resistance is designed for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 18 ATEX 0048X).

Ballast: EP – electronic - 220 – 240 V, 50/60 Hz, 220 – 240 V, 0 Hz DC

Light source: LED, 4000K, CRI +80, MacAdam3

Housing: Plastic material PC (polycarbonate), grey colour RAL 7035

Diffuser: PC (polycarbonate) opal

Fastening: Surface ceiling or wall mounting by means of two self-locking fastening brackets (standard equipment) , suspension by means of wire or cable suspenders.

Connections: Screwless three-pole terminal block, maximum diameter of wires 2.5 mm2

Standard equipment: 1 pc EX cable gland M20 for diameter of cable 7-12mm including sealing, 3x EX sealing plug, 2 pcs fastening bracket, set of pictograms (only for emergency versions - MULTI / Em)

Calculated lifetime – LED modules: L80B10 ta30 – 60 000h L70B10 ta30 – 90 000h

On request: EM-1h/3h - non-maintained emergency lighting **2.7K-6.5K ** - colour temperature MULTI-1h/3h - maintained emergency lighting GESIS – possibility to equip lighting fixtures with connec-tors NANO - lighting fixtures can be protected by special nano-layer (hydrophobic, oleophobic or antibacterial protection) DIM – dimmable electronic ballast (DALI,DSI, 1-10V)

BASET-N-LED, MULTIBASET-N-LED, BASET-N-LED-Em EX II 3G Ex nR IIC T6 Gc EX II 3D Ex tc IIIC T65°C Dc
