AQUA-70-LED-FL

AQUA-70-LED-FL

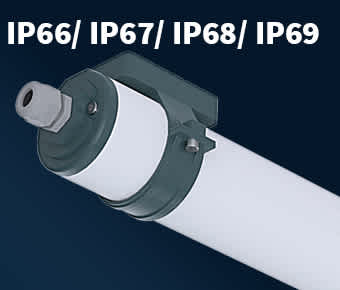

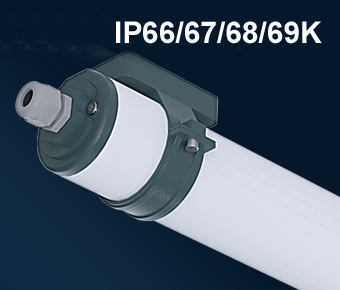

Application: Dustproof lighting fixture AQUA-70-LED with splash water resistance (IP69) and immersion to 15 m resistance (IP68) is designed for areas at car washes, dams, water tanks, swimming pools, and chemical industry. Due to construction and thick-wall housing the lighting fixture is mechanically very resistant.

Ballast: EP – electronic 220 – 240 V/50 Hz-60Hz AC, 220-240 V DC

Light source: LED, 4000K, CRI +80, MacAdam3

Housing: Tube of 70 mm external diameter and 4 mm wall thickness made of opal PC - IK10 (polycarbonate) or opal PMMA - IK06 (polymethyl methacrylate) terminated with sealing plugs.

Fastening: Surface wall or ceiling mounting by means of plastic or stainless steel mounting brackets (not standard equipment) or suspension by means of cable suspenders

Connection: Screwless connector terminal block, maximum diameter of wires 2.5mm2. The lighting fixture can be delivered with a pre-installed cable.

Standard equipment: Cable gland M20 for diameter of cable 6-13mm.

Calculated lifetime – LED modules : L80B10 ta30 – 70 000hL70B10 ta30 – 100 000h

On request: **DIM ** – dimmable electronic ballast (DALI,DSI, 1-10V) 2.7K-6.5K - colour temperature GESIS – possibility to equip lighting fixtures with connectors II - insulation class II NANO – lighting fixtures can be protected by special nano-layer (hydrophobic, oleophobic or antibacterial protection) MULTI-1/3 - maintained emergency lighting **EM-1/3 ** - non-maintained emergency lighting **CRI ** - colour rendering index > 90 1/3 F - single-phase or three phase through wiring connection, max. diameter of wires 2.5mm2
