AQUA-70-EX-LED

AQUA-70-EX-LED

Application:

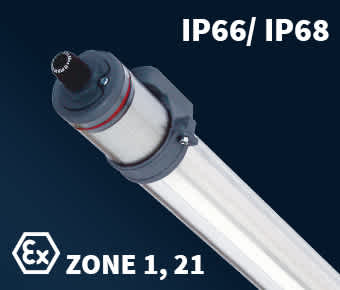

Dustproof and waterproof LED luminaire series AQUA-Ex-LED with resistance against of splashing water is designed for lighting areas with danger of explosion. Luminaire is certified by FTZÚ Ostrava-Radvanice (certificate FTZU 17 ATE X 0052X).

Ballast:
Electronic 110-254 V, 50-60 Hz AC , 220-250 V, 0 Hz DC

Light source:
LED, 4000K, CRI +80

Body:
Plastic tube with outer diameter of 70 mm and wall thickness of 4 mm made from PC – IK10 (polycarbonate), transparent colour

Fastening:
Fastening on ceiling or wall with mounting brackets, suspension by means of self-locking suspenders or with suspension brackets

Connection:
Screwless three-pole terminal block, max. cross section of wires 4,0 mm2

Standard equipment:
1pc Ex plastic cable gland M20x1,5 for diameter of cable 7-13mm, 1pc Ex plastic sealing plug

Calculated lifetime – LED modules:
L80B50 ta50 – 45 000h

On request:
3000K, 4000K, 6000K – temperature of chromaticity 1F – one phase through wiring connection, max. cross section of wires 4,0 mm2

AQUA-70–Ex-LED-D
II 2G Ex db eb mb op is IIC T4 Gb II 2D Ex tb op is IIIC T62°C Db

AQUA-70–Ex-LED-WOD
II 2G Ex eb mb op is IIC T4 Gb II 2D Ex tb op is IIIC T62°C Db
